Product Description

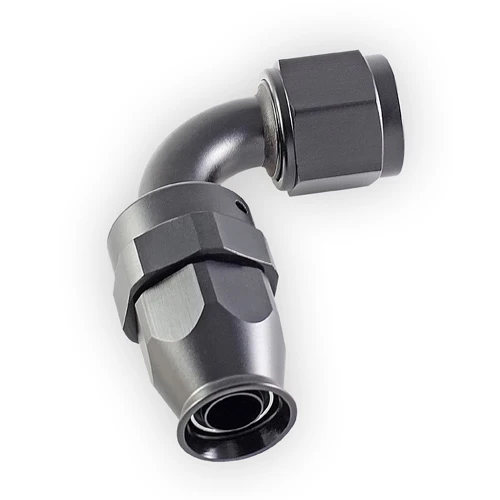

Designed for matching e85Freaks 350 Series PTFE fuel hose, this reusable 90° swivel hose end creates a female AN 37° flare connection for pump gasoline, E85/ethanol, and compatible race-fuel systems.
The 90° configuration redirects the hose at a right angle from the connection, making it a useful choice when the line needs to change direction immediately rather than continuing straight away from the component or adapter.
Quick Specifications
- Product Type: Reusable PTFE AN hose end
- Series: e85Freaks 350 Series
- Angle: 90°
- Configuration: Swivel hose end
- Hose Compatibility: e85Freaks 350 Series PTFE hose
- Fuel Compatibility: Pump gasoline, E85/ethanol, and compatible race fuels
- AN Connection: Female 37° flare
- Available Sizes: -4AN, -6AN, -8AN, -10AN, -12AN, -16AN
- Finish: Black
- Exterior Branding: None — intentionally unbranded
- Quantity: Sold individually
Unbranded by Design
The cleanest builds are often the ones where the plumbing disappears into the finished system.
That is why e85Freaks/JBtuned fittings are intentionally produced without exterior logos, laser-etched branding, or oversized manufacturer markings.
Performance builders often go to considerable effort to create a tucked, simplified engine bay where fuel and fluid plumbing is routed cleanly and kept visually unobtrusive. Repeated logos on every hose end and adapter draw attention back to the fittings themselves, adding visual noise to an area the builder may be trying to minimize.
Our logo-free exterior allows the fitting to blend into the plumbing instead. The hose routing, fabrication, engine, and overall build remain the focus rather than a collection of branded connections throughout the engine bay.
No oversized logos. No unnecessary markings. Just a clean, understated fitting that becomes part of the system instead of calling attention to itself.
Unbranded by design—because the fitting should complete your build, not compete with it.
For e85Freaks 350 Series PTFE Hose
This hose end is designed specifically for matching e85Freaks 350 Series PTFE AN hose. The PTFE hose and 350 Series hose end work together as a matched fuel-plumbing system.
350 Series PTFE hose ends are not compatible with 250 Series rubber-core hose. Matching AN sizes do not make the two hose-end systems interchangeable.
Do not assume that another PTFE hose is compatible simply because it carries the same AN size. PTFE hose construction and outside diameter can vary between hose systems.

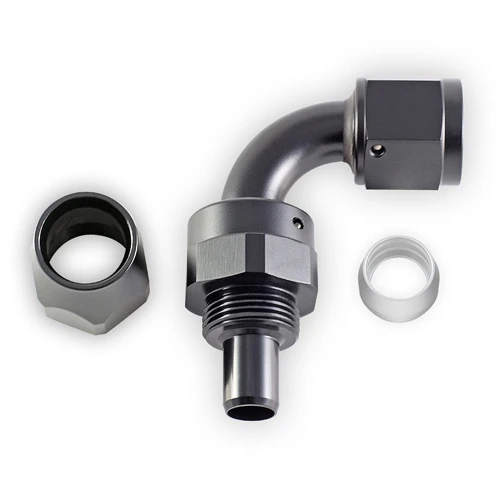

PTFE Hose-End Construction
The 350 Series uses a PTFE-specific compression and olive/ferrule-style termination designed around the construction of the matching PTFE hose.
This differs from the reusable hose-end construction used with the 250 Series rubber-core system and is why the two fitting families remain separate even when the AN connection size is the same.
Why Choose a 90° Hose End?
A 90° hose end is designed for installations where the hose needs to make a full right-angle change in direction immediately after the connection.
This configuration can provide cleaner routing around fuel rails, regulators, filters, firewall areas, and other nearby components when there is limited room for the hose to continue straight ahead.
Using the fitting angle to establish the required direction can also help avoid forcing the PTFE hose into an unnecessarily tight bend immediately after the hose end.
If the routing only requires a moderate directional change, a 45° or 60° hose end may provide a more natural path. For routing that needs to continue back beyond 90°, consider a 120°, 150°, or 180° fitting.

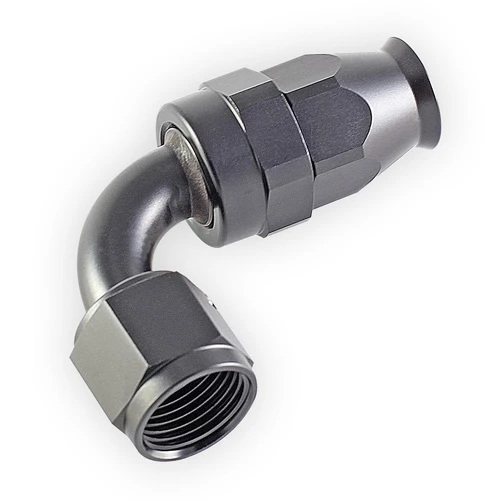

Female AN 37° Flare Connection
The connection side of the hose end uses a female AN 37° flare. The connection seals at the mating flare surfaces rather than at the threads themselves.
Do not apply thread sealant to the AN flare connection. Verify that the mating fitting uses the correct AN size and 37° flare sealing style before assembly.
Reusable Swivel Design
The reusable design allows the hose end to be assembled onto matching 350 Series PTFE hose without permanently crimping the fitting to the hose.
The swivel-style construction also allows the 90° outlet to be properly clocked during assembly so the hose can be oriented toward the required routing path.
Built for E85-Compatible PTFE Fuel Systems
The e85Freaks 350 Series PTFE system is suitable for pump gasoline, E85/ethanol, and compatible race fuels, allowing the same PTFE plumbing system to support a range of fuel choices.
E85-compatible plumbing does not by itself make a vehicle flex fuel. True flex-fuel operation requires an appropriate ethanol-content sensor, compatible wiring or electronics, engine-management support, and proper ECU configuration and tuning.
Select the Correct AN Size
Select the hose-end size that matches both the e85Freaks 350 Series PTFE hose and the AN connection being used.
- -4AN
- -6AN
- -8AN
- -10AN
- -12AN
- -16AN
AN size alone does not determine hose compatibility. Always match the fitting to the correct hose family and size.
Matching 350 Series PTFE Fuel Hose
Pair this hose end with e85Freaks 350 Series Nylon Braided PTFE Fuel Hose for a matching reusable PTFE fuel-line assembly.
Need a Different Routing Angle?
The e85Freaks 350 Series PTFE hose-end family is available in multiple routing configurations, including Straight, 30°, 45°, 60°, 90°, 120°, 150°, and 180°. Choose the angle that allows the hose to follow a natural path without unnecessary bending or interference with nearby components.
Important: This is a 350 Series PTFE hose end. It is not compatible with e85Freaks 250 Series rubber-core hose.
